The packed gland is an exceptionally reliable fluid sealing device that is simple to install and maintain. Not only is it highly versatile, but also remarkably cost effective in both plant downtime and materials - especially when compared to complex alternatives.We bring you one of the widest ranges of packings to match the temperatures, pressures and speeds of your most modern fluid handling systems, and economical packings for your plant.

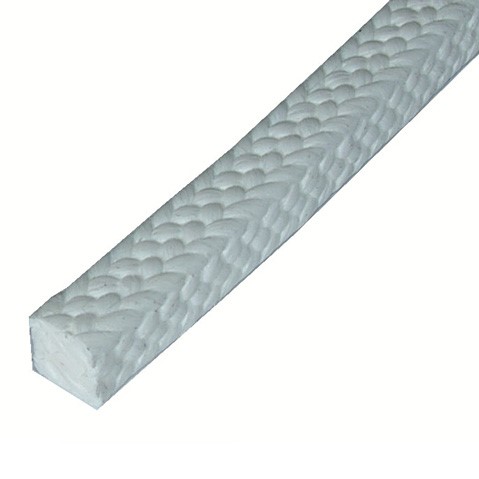

Food Grade PTFE Gland Packing
This Gland Packing is braided from pure PTFE fibers, lubricated with food grade lubricants, without any additives. Square inter-braiding method is used to produce a dimensionally stable packing.
This Non extruding Packing ensures dimensional Stability, safety & purity of the fluid media.
Applications: All food grade application, solvents and virtually all chemicals with the exceptions of molten and alkaline metals and fluorine. It is recommended for Oxygen service, Acid, Alkali, Solvents, Corrosive chemicals.
Operating Range
- pH Range: 0 - 14
- Temperature: -40˚C to + 280˚C
- Pressure Rating: 100Kg/Cm2
- Rotary Speed: 12 m/s

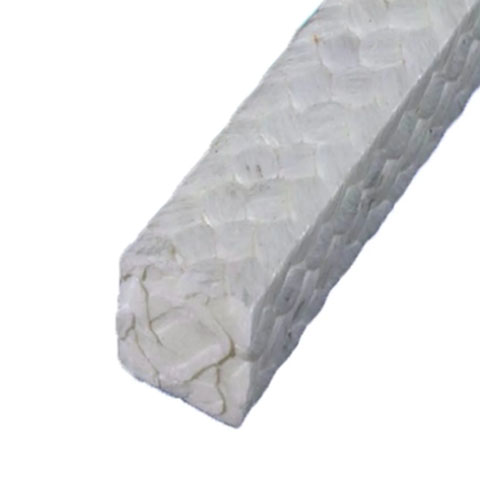

Food Grade Dry PTFE Gland Packing
This is a Square braided packing from high performance, pure and dry expanded PTFE yarn with highly refined mineral filler particles, which are non-toxic and contain no lubricants or additives.
It has Exceptional chemical resistance along with high strength and low coefficient of friction
Applications: Valves against up to the strongest chemicals, solvents and steam. Exceptions are molten and alkaline metals and fluorine.
Operating Range
- pH Range: 0 - 14
- Temperature: -200˚C to +280˚C
- Pressure Rating: 100 Kg/Cm2

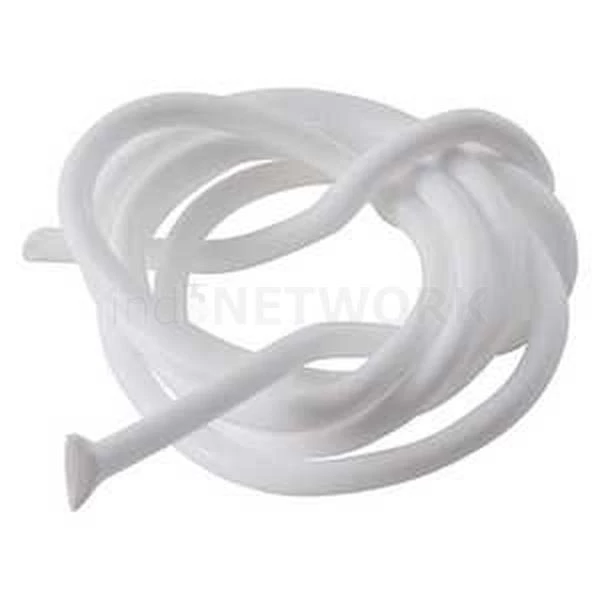

PTFE Universal food grade valve Gland packing
This is a universal Food grade valve packing, round in shape made of 100% Pure, virgin and expanded PTFE. It has double core construction and its core squeezes in all directions to fill all voids in the stuffing box.
It is food grade, free size product with unlimited shelf life.
Applications: : Valves used in Corrosive strongest chemicals, solvents, and steam. Can be used in Ammonia & Chlorine. Exceptions are molten and alkaline metals and fluorine.
Operating Range
- Pressure Rating: 70 Kg/Cm2
- Temperature: -200˚C to +280˚C
- pH Range: 0 - 14

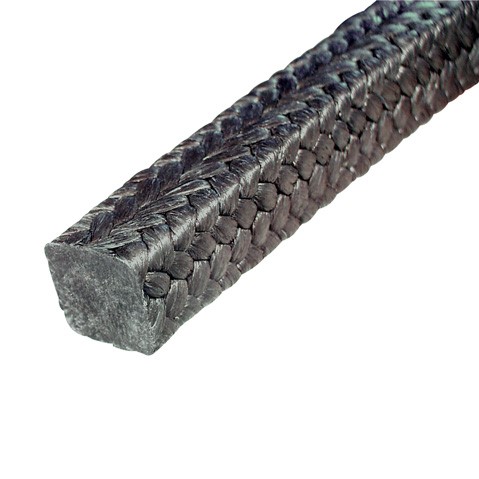

PTFE + Graphite Composite Gland Packing
This gland packing is constructed from PTFE and Graphite inter-locked to create a true synergy between these two premier packing materials. High-temperature break-in and running lubricants are added to the yarns which result in an exceptional process packing that gives, often many times, longer service life in the vast majority of applications.
It is self-lubricating and does not shrink, harden nor dry out. The packing is very cool running with good thermal conductivity thus practically eliminating shaft scoring.
Applications: Can be used against nearly all media in static, rotary and reciprocating uses like Chemical pumps, water pumps, Sugar industry, Chilled water, Brine
Operating Range
- pH Range: 0 - 14
- Temperature: -200˚C to +280˚C
- Pressure Rating: 100 Kg/Cm2
- Rotary Speed: 25 m/s

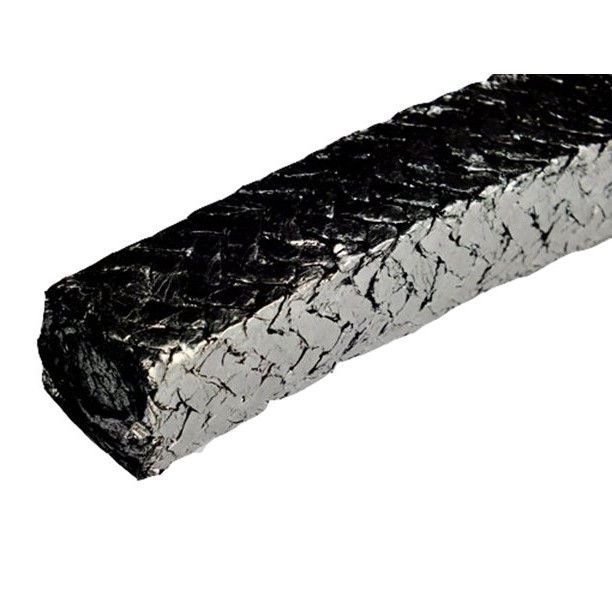

Expanded Graphite Gland Packing
This is a square braided packing, constructed from 100% pure Expanded graphite yarns. This is self-lubricating and will not shrink nor harden nor dry out in use. Soft nature of the packing ensures long life, less friction and avoiding the shaft scoring.
If we add additional reinforcement with Inconel wire , this will become ideal packing for high temperatures, high-pressure valves.
Applications: Extreme condition, long life and zero leakage packing for all uses, up to high temperature, high-pressure, high-speed applications on pumps, valves, mixers, agitators, expansion joints, ball valve seats and other static seals.
Operating Range
- Pressure Rating: 200 Kg/Cm2
- Rotary Speed: 30 m/s
- Temperature: -200°C - +600°C
- pH Range: 1 - 13
Graphite Gland Packing Impregnated with PTFE
This Exapnded Graphite fiber braided packing that is impregnated with dispersiond PTFE is made of Pre-oxidized fibers which have high strength and good thermal conductivity, and PTFE makes it with excellent self-lubrification.
This packing is having Excellent cross-section tightness, structural strength which leads to anti-extrusion. It has Very low friction-valve, wear resistant, yet gentle to shaft and stem.
Applications: Can be used as a middle ring in high temperature and high pressure service in valves, pumps, expansion joints, mixer and agitators of pulp and paper, power station and chemical plant etc.
Operating Range
- pH Range: 1-14
- Temperature: -100˚C to +360˚C
- Pressure Rating: 100 Kg/Cm2
- Rotary Speed: 15 m/s

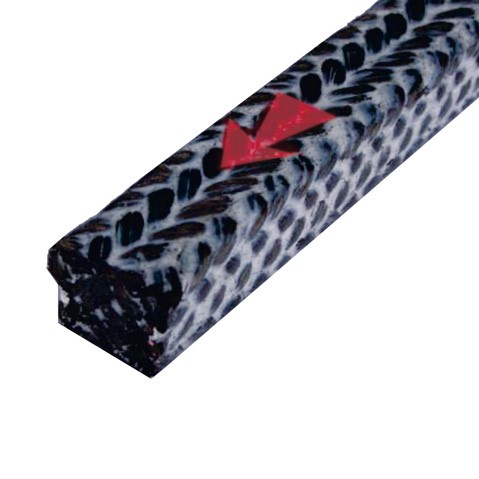

Carbon Gland Packing Impregnated with PTFE
This carbon fiber braided packing that is impregnated with dispersiond PTFE is made of Pre-oxidized fibers which have high strength and good thermal conductivity, and PTFE makes it with excellent self-lubrification.
The strength of carbon is ideal for use as anti-extrusion, abrasion resistant, back-up rings, with other packing types, to increase the life of any packing combination.
Applications: For pumps (rotary and reciprocating) and valves, including high pressure or high mechanical loading conditions, against abrasive slurries, sewage, effluents, water, oils, solvents and most chemicals. Very Much Suitable for use in the paper industry.
Operating Range
- pH Range: 1-13
- Temperature: -100˚C to +280˚C
- Pressure Rating: 200 Kg/Cm2
- Rotary Speed: 15 m/s

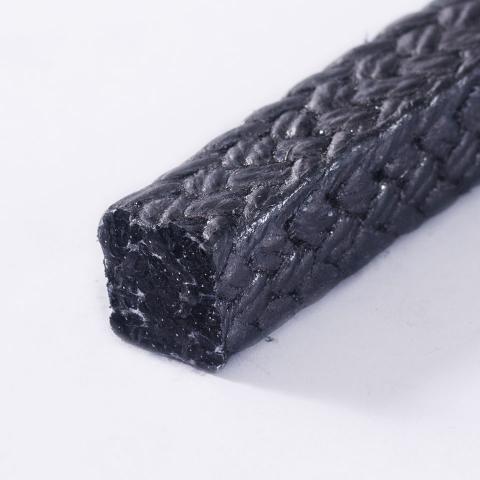

Carbon Gland Packing Impregnated with Graphite
This is inter-braided from pure Carbon yarn impregnated with pure Graphite powder. The Graphite powder increases the natural sealing effect of the Carbon yarns and acts as a surface lubricant top produce a virtually non-scoring Gland Packing.
Carbon fibre with graphite ensures excellent thermal conduction, smooth running, near universal chemical resistance and extreme temperature capability.
Applications: For pumps and valves in extreme conditions or where the value of the best quality Gland Packing can be realized. High temperature and high speed applications, Paper industry, Textile industry.
Operating Range
- Pressure Rating: 300 Kg/Cm2
- Rotary Speed: 20 m/s
- Temperature: Up to 650˚C
- pH Range: 1 - 13

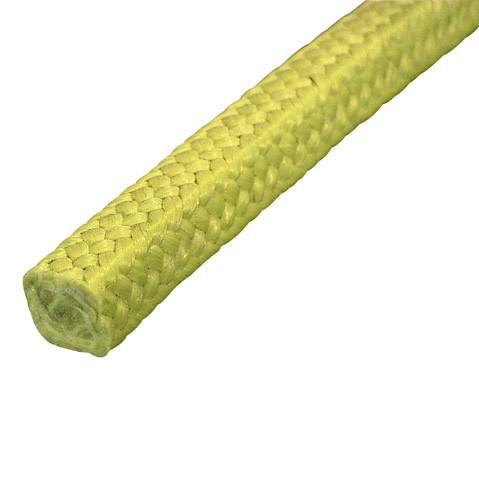

Aramide Gland Packing
This Gland Rope is a square braided packing manufactured by using Aramid fibres impregnated with PTFE and specially treated with high-temperature break-in-lubricant.
Aramide with PTFE packing is a true multi-service packing that is well suited to the needs the industries where physical strength in a packing is required. The strength of Aramide is ideal for use as anti-extrusion, abrasion resistant, back-up rings, with other packing types, to increase the life of any packing combination.
Applications: For pumps (rotary and reciprocating) and valves, including high pressure or high mechanical loading conditions, against abrasive slurries, sewage, effluents, water, oils, solvents and most chemicals. Very Much Suitable for use in the paper industry.
Operating Range
- pH Range: 1-13
- Temperature: -100˚C to +280˚C
- Pressure Rating: 390 Kg/Cm2
- Rotary Speed: 15 m/s
