Apextherm Filtia On-line Carbon filtration system
ApexTherm Filtia is the on line filter designed for Thermic fluid system. It will filter carbon, ash, corrosion products, Viscous contaminants continuously.
This filtration system does not require additional pump for filtration. It has to be connected between Thermic fluid coil outlet line & Return line which is connected to Deareation Tank.
Investing in thermal fluid filtration can help you to operate a cost-effective system. Regular fluid monitoring and filtration will avoid downtime caused by seal wear on pumps and valves. Thermal fluid filtration can also lead to energy savings.
Filtration Benefits
- Extend Service Life of the Hot Oil
- Reduction of System Maintenance
- Reduction of Wear and Tear on Seals
- Improve Heat Transfer Efficiency
- Reduces Sludge Build-Up, Thereby Improving Viscosity of Fluid
- Design for Operation up to 320°C
Apextherm Filtia On-line Carbon filtration system comes with following:
- MS powder Coated Housing with legs
- SS 304-micron cartridges (welded and reusable 25 and 10 micron)
- Matching flanges for Outlet, Inlet and Drain
- Liquid filled Pressure gauges (2 Numbers)
- Outlet and Inlet pipes
- Drain pipe
- Pipe line fabrication, isolation valves, any civil works & Insulation and stands are in your scope

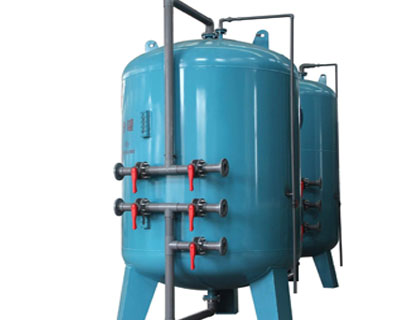

Apextherm Filtia 999 Sand Filter :
Sand filters are widely used in water purification and remove suspended matter by a completely different mechanism. Instead of the water passing through small orifices through which particles cannot pass, it runs through a bed of filter medium, typically 0.75 mm sand 750 mm deep. The orifices between such sand particles are relatively large, but dirt is adsorbed onto the large surface area presented by the medium.
Key Features:
- Vertical design to provide the more depth and degree of filtration.
- More space for dirt collection which minimizes frequency of back washing.
- Anti corrosion coating from inside
- Fitted high quality number of Mushroom strainers for ultrafine filtration.
- Two inlets and outlets to facilitate more installations options.
- Less pressure drop
Applications:
- Effective in filtering organic as well as inorganic contaminants.
- Mainly used if algae, silt and clay particles are abundant quantity into water / muddy water
- Essential for all the water sources exposed to Sun rays.
